Features of XE/XEH 1Ton \ 1.5Ton Electric Stacker:
1. Germany Mannstaedt forklift profile for mast building.
2. SWISS BUCHER brand or ITALY HYDRAPP Hydraulic pump.
3. Regenerative braking function
4. CURTIS electronic controller

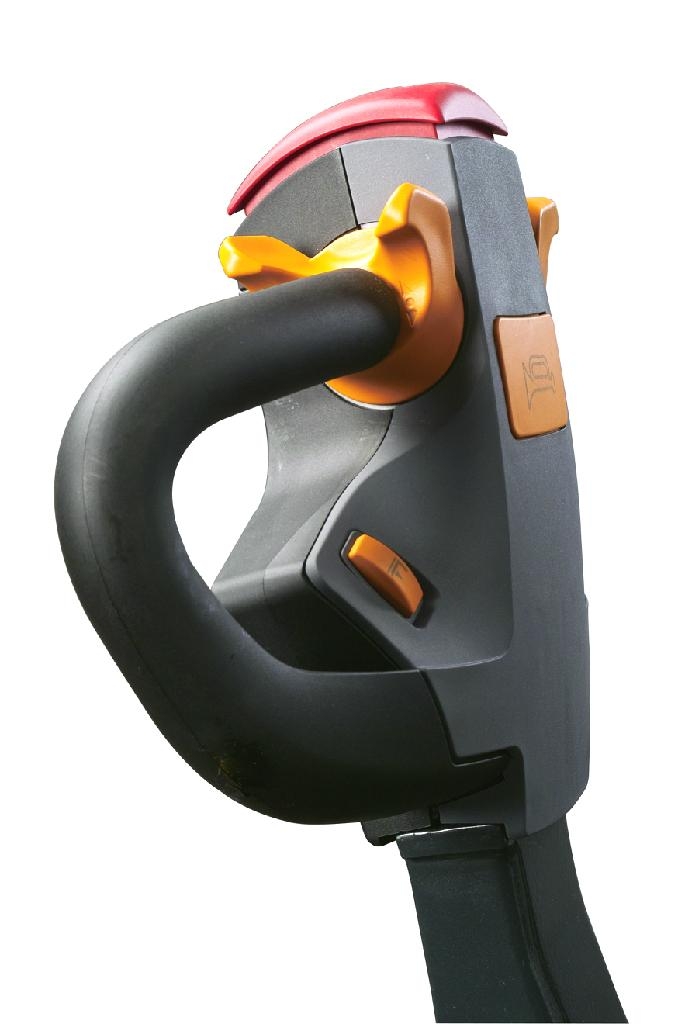

5. Germany Frei handle
6. Battery side extraction: The side gate and the battery cover are openable. Battery can be removed from the side, making it very convenient to replace and maintain batteries.
7. Emergency reversing device in the handle provides improved operating safety.
8. Emergency power disconnect switch.
9. Braking applied with handle upright and horizontal position, increasing the safety of the truck.
10. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
11. The mast and the frame are dividable and exchangeable.
Technical Data for XE/XEH 1Ton \ 1.5Ton Electric Stacker:
|
Identification |
Product model |
|
XE10A |
XE10B |
XE15A |
XE15B |
XEH15A |
XEH15B |
|||||
|
Power supply |
|
Electric |
Electric |
Electric |
Electric |
Electric |
Electric |
||||||
|
Operating type |
|
Standing |
Pedestrian |
Standing |
Pedestrian |
Standing |
Pedestrian |
||||||
|
Load capacity |
Q Kg |
1000 |
1000 |
1500 |
1500 |
1500 |
1500 |
||||||
|
Load center distance |
C mm |
600 |
600 |
600 |
600 |
600 |
600 |
||||||
|
Load distance |
X mm |
430 |
430 |
440 |
440 |
443 |
443 |
||||||
|
Wheelbase |
Y mm |
1280 |
1280 |
1330 |
1330 |
1342 |
1342 |
||||||
|
Weight |
Weight(without battery) |
Kg |
700 |
680 |
775 |
755 |
930 |
905 |
|||||
|
Axle loading, loaded
|
Kg |
736/1164 |
728/1152 |
962/1563 |
937/1568 |
1126/1554 |
1106/1549 |
||||||
|
Axle loading,unloaded
|
Kg |
612/288 |
598/282 |
705/320 |
680/325 |
826/354 |
808/347 |
||||||
|
Wheel |
Tyres |
|
Polyurethane |
||||||||||
|
Tyre size drive end |
mm |
Φ250x80 |
Φ250x80 |
Φ250x80 |
Φ250x80 |
Φ250x80 |
Φ250x80 |
||||||
|
Type size load end |
mm |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Φ80x70 |
||||||
|
Balancing wheel size |
mm |
Φ125x50 |
Φ125x50 |
Φ125x50 |
Φ125x50 |
Φ125x50 |
Φ125x50 |
||||||
|
Wheels number (x=drive wheel) drive end/load end |
|
1x-2/4 |
1x-2/4 |
1x-2/4 |
1x-2/4 |
1x-2/4 |
1x-2/4 |
||||||
|
Tread width drive end |
mm |
690 |
690 |
690 |
690 |
690 |
690 |
||||||
|
Tread width load end |
mm |
400 |
400 |
400 |
400 |
400 |
400 |
||||||
|
Dimensions |
|
Height data is on the bottom — Height data choices |
|||||||||||
|
Forks height, lowered |
h5 mm |
86 |
86 |
86 |
86 |
86 |
86 |
||||||
|
Height of handle in drive position (Max/Min) |
h6 mm |
1350/985 |
1350/985 |
1350/985 |
1350/985 |
1350/985 |
1350/985 |
||||||
|
Overall length |
L1 mm |
1950 |
1890 |
2020 |
1960 |
2023 |
1963 |
||||||
|
Length to face of forks |
L2 mm |
797 |
737 |
869 |
809 |
873 |
793 |
||||||
|
Overall width |
b1 mm |
850 |
850 |
850 |
850 |
924 |
924 |
||||||
|
Fork dimensions |
s/e/l mm |
170/66/1150 |
180/66/1150 |
||||||||||
|
Forks width |
b3 mm |
570 or 680 |
|||||||||||
|
Min. ground clearance |
m mm |
30 |
30 |
30 |
30 |
30 |
30 |
||||||
|
Aisle width for pallets 800x1200 lengthways |
Ast mm |
2225 |
2140 |
2300 |
2210 |
2300 |
2210 |
||||||
|
Turning radius |
Wa mm |
1545 |
1460 |
1610 |
1520 |
1610 |
1520 |
||||||
|
Performance |
Travel speed loaded/unloaded |
km/h |
5.2/6 |
4/5 |
5.2/6 |
4/5 |
4.6/5.2 |
4.6/5.2 |
|||||
|
Lift speed loaded/unloaded |
mm/s |
90/120 |
90/120 |
90/120 |
90/120 |
120/150 |
120/150 |
||||||
|
Lowering speed loaded/unloaded |
mm/s |
125/80 |
125/80 |
125/80 |
125/80 |
150/125 |
150/125 |
||||||
|
Max gradeability loaded/unloaded |
% |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
5/8 |
||||||
|
Service brake |
|
Electromagnetic |
|||||||||||
|
Electric Motor |
Drive motor rating |
kW |
1.2(DC),1.5(AC) |
1.2(DC),1.5(AC) |
1.2(DC),1.5(AC) |
||||||||
|
Lift motor rating |
kW |
2.2/3.0 |
2.2/3.0 |
2.2/3.0 |
|||||||||
|
Battery voltage / nominal capacity |
V/Ah |
24/180(210) |
24/210(240-280) |
24/240(280) |
|||||||||
|
Battery weight |
Kg |
210(230) |
230(250-280) |
250(280) |
|||||||||
|
Others |
Type of drive control |
|
MOSFET Control |
||||||||||
|
Noise level at operator’s ear |
dB(A) |
<70 |
|||||||||||
Height Data Choices
|
Model |
Mast type |
Lift h3 (mm) |
Height with mast closed h1 (mm) |
Free Lift h2 (mm) |
Height with mast Extended h4 (mm) |
|
XE10/XE15 |
Single |
1600 |
1980 |
1600 |
1980 |
|
Dual |
2500 |
1750 |
/ |
2956 |
|
|
Dual |
3000 |
2000 |
/ |
3465 |
|
|
Dual |
3500 |
2250 |
/ |
3965 |
|
|
Dual |
4000 |
2500 |
/ |
4465 |
|
|
Triple |
4500 |
2055 |
1490 |
4979 |
|
|
XEH15 |
Triple |
4800 |
2155 |
1600 |
5285 |
|
Triple |
5000 |
2255 |
1660 |
5485 |
|
|
Triple |
5500 |
2445 |
1820 |
5985 |
