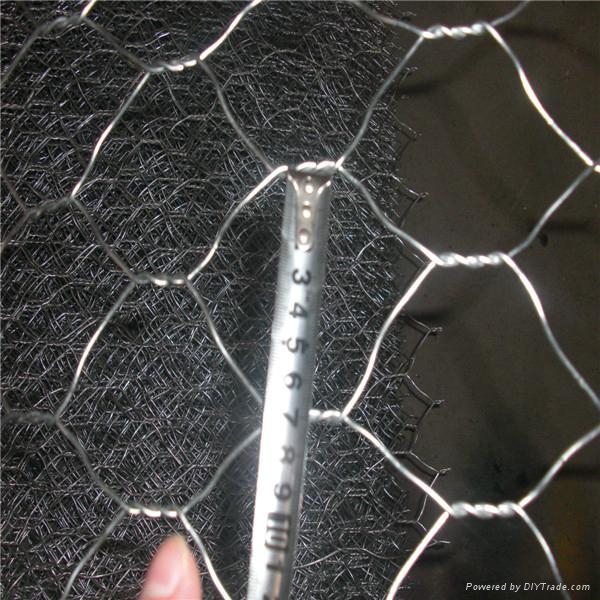

  • PVC Coated Iron Wire Gabion mesh 1
  • PVC Coated Iron Wire Gabion mesh 2
  • PVC Coated Iron Wire Gabion mesh 3
  • PVC Coated Iron Wire Gabion mesh 4

PVC Coated Iron Wire Gabion mesh

Model:wgm
Brand:wanlai
Origin:Made In China
Category:Metallurgy , Mining & Energy / Metallurgy & Mining / Wire Mesh
Label:Gabion mesh , PVC Gabion mesh , Gabion wire mesh
Price: US $50 / pc
Min. Order:100 pc
Inquire Now Add to Basket

Member Information

Detail

Hebei Wanlai Import & Export Co., Ltd.

Free MemberHe Bei - China
Live Chat:Last Online:17 Jan, 2014

Product Description



Hot Sale PVC Coated Iron Wire Gabion mesh



Gabions are fabricated from heavy hexagonal mesh, used in control and guide of water or flood, flood bank or guiding bank, preventing of rock breaking, water and soil protection, bridge protection, strengthening structure of soil, protection engineering of seaside area, seaport engineering, isolation walls, protection of road, etc.



gabion wire mesh (4).jpg




Gabions are made of the following two wire fabrics:
(1) Galvanized Hexagonal Wire Mesh Heavy Type: Made with high quality low-carbon steel wire to weave, steel wire tensile strength is 38kg/M2. The wire diameter may reach 2.0mm-4.0mm. The steel wire is usually galvanized. And the galvanizing layer thickness can be made according to the customer request. Max. galvanizing quantity can be 300g/ M2.

(2) PVC Coated Hexagonal Wire Mesh Heavy Type: PVC coated hexagonal Mesh is made of pvc coated wire that offers longer service life and better anticorrosion property.


gabion wire mesh (11).jpg


Gabions sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m. Custom orders available.
Finish can be hot-dipped galvanized, galvanized aluminum alloy or PVC coated, etc.

Applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil

Protection engineering of seaside area.



gabion wire mesh (23).jpg





Hexagonal Wire Netting Gabions

Opening
(mm)

Wire Diameter(Metal Wire)
(mm)

Wire Diameter (PVC Coate)/
Inner/Outside(mm)

Strands

60X80

f2.0-2.8

f2.0/3.0-2.5/3.5

3

80X100

f2.0-3.2

f2.0/3.0-2.8/3.8

3

80X120

f2.0-3.2

f2.0/3.0-2.8/3.8

3

100X120

f2.0-3.4

f2.0/3.0-2.8/3.8

3

100X150

f2.0-3.4

f2.0/3.0-2.8/3.8

3

120X150

f2.0-4.0

f2.0/3.0-3.0/4.0

3
