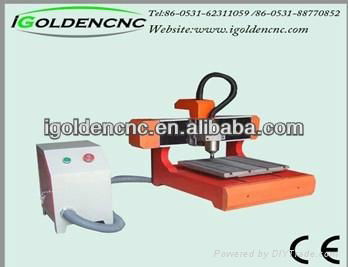

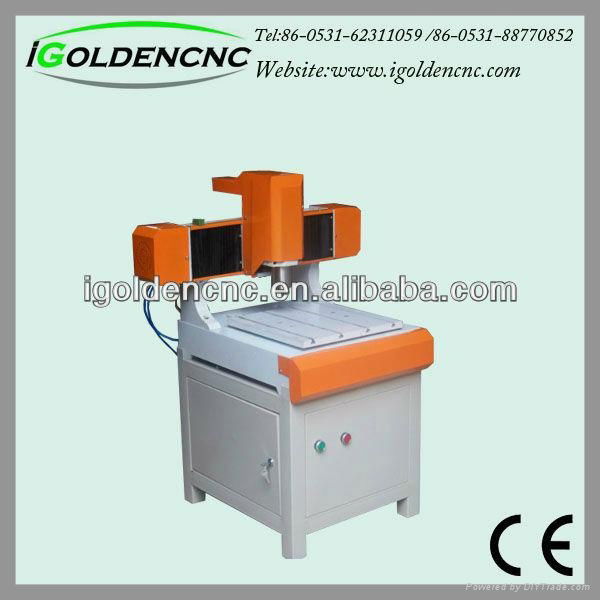

Home ued cheap CNC router highly quality
Feature:
1. Integrally cast-iron structure, steady structure, high rigidity,precision 0.01mm.
2.Imported Germany ball screw and Taiwan linear orbits, also installed with Japan bevel math bearing for ball screw to make sure the accuracy and reposition precision.
3.Adopt high-speed water cooling variable frequency motor, big torque, strong cutting, high-frequency , long life, can be long time continuous working
4.Adopts high-end configuration, cast iron structure, Germany ball screw, and use table
movement to keep machine stable.
5.This model suit for advertising fileds,such as logo,sign,billboard,nameplate,marks,label,
character cutting,artcrafts,etc.
Types:IGA-6090, IGA-1212, IGA-1224, IGA-5060, We can also produce it according to your size.
Specification
|
Table size |
350mm*350mm |
|
Woking area |
300mm*300mm*100mm |
|
Positional accuracy |
±0.02/300mm |
|
Repeated Positional accuracy |
±0.02mm |
|
Max working bear load |
70kg |
|
Spindle power |
1.5kw |
|
Max travelling speed |
7000mm/min |
|
Max working speed |
6000mm/min |
|
Spindle rotating speed |
0-24000rpm |
|
Driving system |
Servo (optional) |
|
Working voltage |
AC 220V/380V-50HZ |
|
Boundary dimension |
850mm*800mm*800mm |
Applications:
1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould
2.Decoration: acrylic, density board, organic glass, soft metals like aluminum, etc.
