Model: | SO-A10 |
---|---|
Brand: | - |
Origin: | Made In China |
Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
Label: | galvo scanner , galvanometer scanner , laser marking |
Price: |
€1200
/ pc
|
Min. Order: | 2 pc |
Live Chat: | Last Online:09 Jan, 2014 |

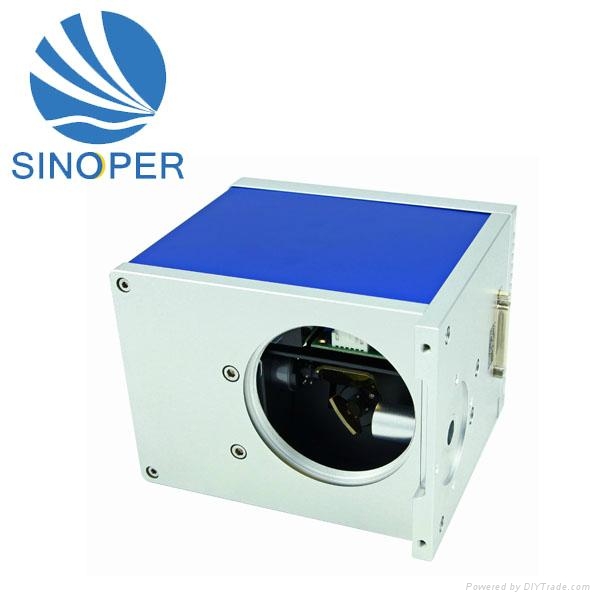

10mm input beam aperture Galvanometer Scanner for fractional laser system
Advantage of the produce:
1. Higher speed higher stable, zero drift
2. Low temperature and stronger anti-interference.
3. High quality and good price
4.Lower temperature and higher precision
5.The galvo scanner is designed with analog and digital interfaces.
Specification for motor
Working Temperature |
25°C ± 20°C |
Linearity |
99.9% |
Setting Time |
≤ 0.3ms |
Scale Drift |
< 20PPM/°C |
Zero Drift |
< 10μRad. /°C |
Long Term Drift Over 8 hours |
< 0.5mRad |
RMS Current |
3A(Max) |
Peak Current |
15A(Max) |
Maximum Scan Angle |
± 20° |
Storage Temperature |
-10 to +60°C |
Resolution |
10μrad |
Repeatability |
12μrad |
Input Aperture |
10mm |
Frequency |
≤1000Hz |
Specification for drive
Input Voltage |
± 15/24VDC@4A MAX.RMS |
Interface Signals |
Digital:XY2-100 |
Analog Signal Input Resistance |
200K ± 1%Ω |
Position Signal Input Resistance |
1K ± 1%Ω |
Position Signal Input Scale Factor |
0.5V/° |
Position Signal Output Scale Factor |
0.5V/° |
Working temperature |
0°C - 40°C |
