| Model: | ST-156V-5-BC100 |
|---|---|
| Brand: | HYS |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Antenna |
| Label: | fiberglass antenna , repeater antenn , base station antenna |
| Price: |
-
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:14 Jun, 2023 |
|
ELECTRICAL SPECIFICATIONS
|
|
|
FrequencyRange
|
155-165MHz
|
|
Band Width
|
4MHz
|
|
Impedance
|
50 Ohm
|
|

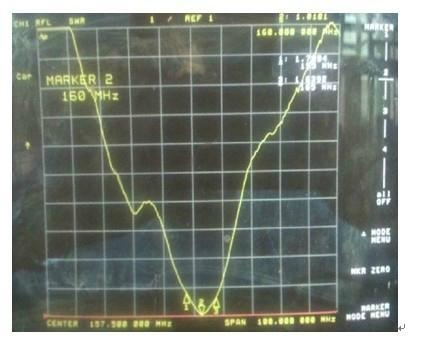

VSWR
|
< 1.5
|
|
Gain
|
5.0DBI (160MHz)
|
|
Horizontal Beam Width
|
360°
|
|
Vertical Beam Width
|
52°
|
|
Polarization
|
Vertical
|
|
Maximum Power Input-watts
|
200W
|
|
Lighting Protection
|
Direct Ground
|
|
MECHANICAL SPECIFICATIONS
|
|
|
Height
|
1.7mm
|
|
Hold Pole Diameter
|
Ø30- Ø62mm
|
|
Termination
|
SL16 Female
|
|
Radiating Element Material
|
Cu
|
|
Radome Material
|
Fiberglass
|
|
Color
|
White
|
|
Material of Hardware -supplied
|
Aluminum Alloy
|
|
Net Weight
|
1.3KGS
|
