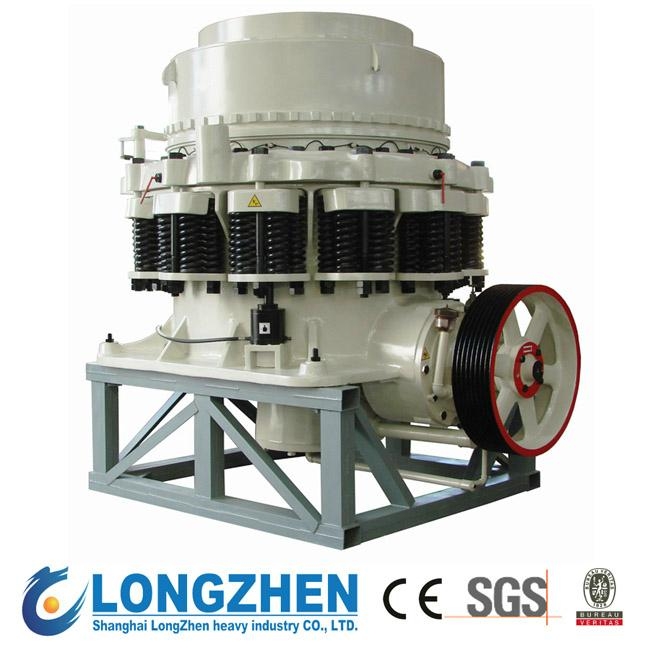

Symons Cone Crusher

Model:	-
Brand:	Shanghai Longzhen
Origin:	Made In China
Category:	Industrial Supplies / Mining Machine
Label:	Symons Cone Crusher , Cone Crusher
Price:	US $999999 / set
Min. Order:	1 set

Inquire Now Add to Basket

Member Information

SHANGHAI LONGZHEN MACHINERY CO., LTD

Free MemberShang Hai - China

Live Chat:

Last Online:09 Mar, 2019

Product Description

Application of Symons Cone Crusher

Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry. Our cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc. In a whole production line, usually, the cone crusher is used for secondary or tertiary crushing process, or first crushing.

Structure Characteristic of Symons cone crusher

A). Simplicity of design and r ed construction have made cone crusher ideal for crushing operations.

B). The spring-loaded release system allows any uncrushable material to pass through without causing any damage.

C). The lubrication unit is interlock with the main motor for additional safety as a standard equipment.

D). A rid liner is provided inside the bottom section of the frame to help protect it from wear.

Advantages of symons cone crusher

A). Reliable quality certified by CE and reaches to European standard.

B). Newest improved design with our own technical patent.

C). It’s produced with a dust-catcher coil to stop the dust.

D). Hydraulic adjusting system to control the output sizes

E). The hydraulic chamber is the standard equipped.

If you want to learn more product information, please visit our website:

http://www.crusherzone.asia

Symons Cone Crusher Technical Data

Model	Chamber	Max. Feed Size (mm)	Min discharge opening (mm)	Power (kw)	Correlation table for the discharge opening and capacity (t/h) Close discharge size									Weight (kg)
Model	Chamber	Max. Feed Size (mm)	Min discharge opening (mm)	Power (kw)	6mm	10mm	13mm	16mm	19mm	22mm	25mm	38mm
PY1000	Coarse	160	13	90-110			80	100	135	150	175	235	10800
	Medium	115	10	90-110		65	75	90	120	135	150
	Fine	80	8	90-110	52	62	72	78	115
	Extra Fine	50	3	90-110	50	55	65	70	102
PY1160	Coarse	180	13	110-132			115	135	150	180	200	260	15500
	Medium	130	10	110-132		100	110	120	135	165	175
	Fine	90	10	110-132		80	105	110	140
	Extra Fine	60	6	110-132		60	74	105	110	130
PY1300	Coarse	200	16	132-160				150	180	200	230	310	22300
	Medium	150	13				115	140	160	190	210
	Fine	102	10			90	115	145	160
	Extra Fine	70	8			88	110	135	155
PY1380	Coarse	215	19	185-220					200	220	260	350	26300
	Medium	160	16					155	180	200	220
	Fine	115	13				150	190	210	230
	Extra Fine	76	8			122	148	185	200
This technical data is designed by longzhen.Please contact us to get more data.

Price Terms:	FOB Shanghai
Payment Terms:	TT / LC / DP / DA
Packing:	Export
Lead Time:	45 Days
Standards Certificate:	CE/SGS/BV/ISO

Product Image

Img 1
