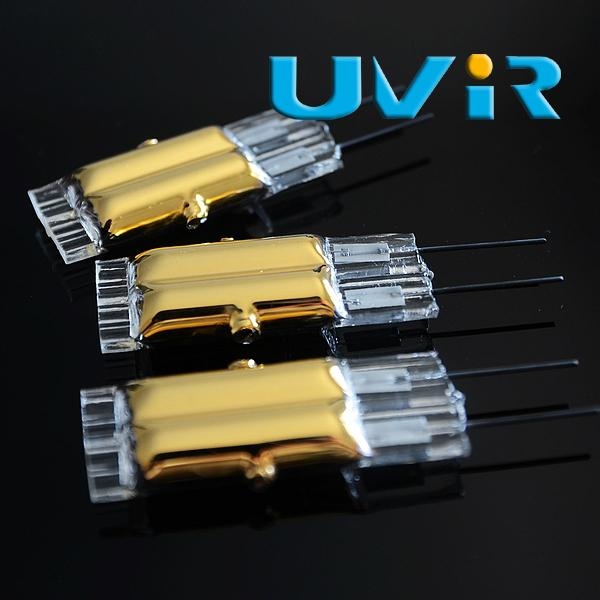

Twin tube Infrared Lamp IR Lamp Halogen heater infrared Heater

Twin tube Infrared Lamp IR Lamp Halogen heater infrared Heater 1

Twin tube Infrared Lamp IR Lamp Halogen heater infrared Heater 2

Twin tube Infrared Lamp IR Lamp Halogen heater infrared Heater 3

Model:	UVIR
Brand:	Heraeus
Origin:	Made In China
Category:	Consumer Electronics & Lighting / Heaters
Label:	Infrared Lamp IR Lam , ir lamp , infrared heater
Price:	-
Min. Order:	5 pc

Inquire Now Add to Basket

Member Information

UVIR CO.,LTD

Free MemberGuang Dong - China

Live Chat:

Last Online:02 Jul, 2013

Product Description

Short Wave Twin Tube IR Emitter
Power Density	Less 200 W/cm
Max.Heated Length	6400 / 2400w mm
Corss Section	23x11 / 34x14 mm
Filament Temp.	1850-2400 Degree Celsius
Peak Wavelength	1.0-1.4 um
Reflector	Gold Reflector
Max. Power	200 kw / m2
Response Time	1 s

2. Product Details

.jpg

3.Product Range

1.Short Wave IR lamp	Single / Twin / Ring / Contour	Gold / White ceramics / Clear
2.Middle Wave IR lamp	Single / Twin / Ring / Contour	Gold / White ceramics / Clear
3.Long Wave IR lamp	Single / Twin / Ring / Contour	Gold / White ceramics / Clear

4.Product Number

Short Wave Twin IR Lamps
NO.	Model NO.	Voltage	Watt	Quartz Tube size	Total Length	Heating Length	Reflector	Lamp Type	Heraeus NO.
1	H800025	55V	400W	11*23mm	115mm	50mm	Gold	B	45130750
2	H800027	115V	400W	11*23mm	115mm	50mm	Gold	B
3	H800054	115V	400W	11*23mm	115mm	50mm	Gold	B
4	H800002	115V	450W	11*23mm	115mm	50.8mm	Gold	B
5	H800030	115V	450W	11*23mm	72mm	25mm	Gold	B
6	H800021	115V	450W	11*23mm	72mm	25.4mm	Gold	B
7	H800021-NG	115V	450W	11*23mm	72mm	25.4mm	C	B
8	H800061	115V	450W	11*23mm	83mm	35mm	C	B
9	H800031	115V	450W	11*23mm	115mm	45mm	Gold	B
10	H800024	115V	600W	11*23mm	145mm	80mm	Gold	B
11	H800053	115V	600W	11*23mm	145mm	80mm	Gold	B	09751713
12	H800020	115V	900W	11*23mm	170mm	115mm	Gold	B
13	H800007	115V	920W	11*23mm	198mm	140mm	Gold	B
14	H800060	115V	1000W	11*23mm	192mm	127mm	Gold	B
15	H800057	115V	1200W	11*23mm	218mm	153mm	Gold	B
16	H800101	120V	450W	11*23mm	115mm	50.8mm	Gold	B
17	H800022	120V	700W	11*23mm	140mm	89mm	Gold	B
18	H800055	120V	800W	11*23mm	167mm	102mm	Gold	B
19	H800023	120V	1100W	11*23mm	195mm	140mm	Gold	B
20	H890007	230V	1200W	11*23mm	405mm	340mm	Gold	B	09751741
21	H890008	230V	1500W	11*23mm	300mm	200mm	Gold	B	09751751
22	H800019	230V	2350W	11*23mm	410mm	355mm	Gold	B
23	H890012	230V	3000W	11*23mm	650mm	500mm	Gold	B	09751761
24	H800065	230V	3000W	11*23mm	415mm	350m	Gold	B
25	H800016	230V	3500W	11*23mm	488mm	444mm	Gold	B
26	H890001	230V	4200W	11*23mm	850mm	700mm	Gold	C	09751765
27	H800006	240V	1250W	11*23mm	250mm	190mm	Gold	B
28	H890009	240V	1500W	11*23mm	255mm	190mm	Gold	B	80002677
29	H800012	240V	1500W	11*23mm	260mm	216mm	Gold	B
30	H800001	240V	1500W	11*23mm	268.2mm	203.2mm	Gold	B
31	H800005	240V	1650W	11*23mm	314mm	254mm	Gold	B
32	H800004	240V	2000W	11*23mm	363mm	305mm	Gold	B
33	H890010	240V	2000W	11*23mm	320mm	255mm	Gold	B	45132045
34	H890011	240V	2000W	11*23mm	370mm	305mm	Gold	B	45132827
35	H800015	240V	2800W	11*23mm	415mm	355mm	Gold	B
36	H800009	240V	3000W	11*23mm	540mm	444mm	Gold	B
37	H800062	240V	3100W	11*23mm	474mm	394mm	Gold	C
38	H890013	240V	3400W	11*23mm	510mm	430mm	Gold	C	80009073
39	H800059	240V	3400W	11*23mm	510mm	430mm	Gold	B
40	H800014	240V	4000W	11*23mm	573mm	508mm	Gold	B
41	H890015	400V	3500W	11*23mm	1100mm	1000mm	Gold	B	86366322
42	H890004	400V	5400W	11*23mm	1200mm	1120mm	Gold	H

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
