| Model: | - |
|---|---|
| Brand: | HK |
| Origin: | - |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | auto screen printer , screen printer , printing machines |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:30 Jan, 2021 |
Application:

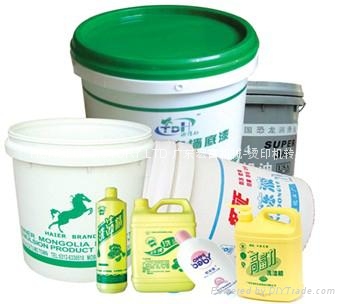

The US102 is designed for multi-colour decoration of cylindrical/oval/square plastic/glass bottles, hard tubesat high production speeds. It is suitable for glass and plastic containers printing with UV ink. Mechanical driven and fast speed make the US102 ideal for off-line or in-line 24/7 production.
General Description:
1．Automatic multi-color screen printing line for cylindrical/oval/square bottles.
2．Automatic loading system with belt (bowl feeder and hopper optional)
3．Auto flame treatment equipped with exhaust gas and heat discharger
4．Perfect mechanical transmission system with vacuum. Faster, smooth and silent
5．Automatic 180 degree rotation for oval and square bottles
6．Quick and easy change over from one product to another. Same shape bottle, 15 minutes min for 1 color; different shape bottles, 30 minutes min per color. It saves at least 50% time for changing products
7．Auto high efficiency HANOVIA UV curing system
8．Mechanically driven system, compact size
9．Omron PLC control & Proface touch screen operation system
10．Promise of quality with SMC, FESTO pneumatic parts and Omron, Schneider Electric parts.
11．Automatic unloading
12．CE standard machine
Tech-data
|
Parameter \ Item |
US102 multi colors automatic screen printer |
|
Machine Dimension: |
|
|
Flame treatment: |
1020x550x1600mm |
|
Printing unit: |
1020x750x1600mm |
|
Power: |
380VAC 3Phases 50/60Hz 9KW |
|
Air consumption |
5-7 bars |
|
|
Round container |
|
Printing Diameter: |
25--120mm |
|
Printing Length: |
50-280mm |
|
Max printing speed |
4000pcs/hr |
|
|
Flat/oval container |
|
Printing Radius: |
R20--R250mm |
|
Printing Width |
40-120mm |
|
Printing Length: |
50-280mm |
|
Max printing speed: |
5000pcs/hr |
|
|
Square container |
|
Max printing length |
100-200mm |
|
Max printing width |
40-100mm |
|
Max printing speed: |
4000pcs/hr |
