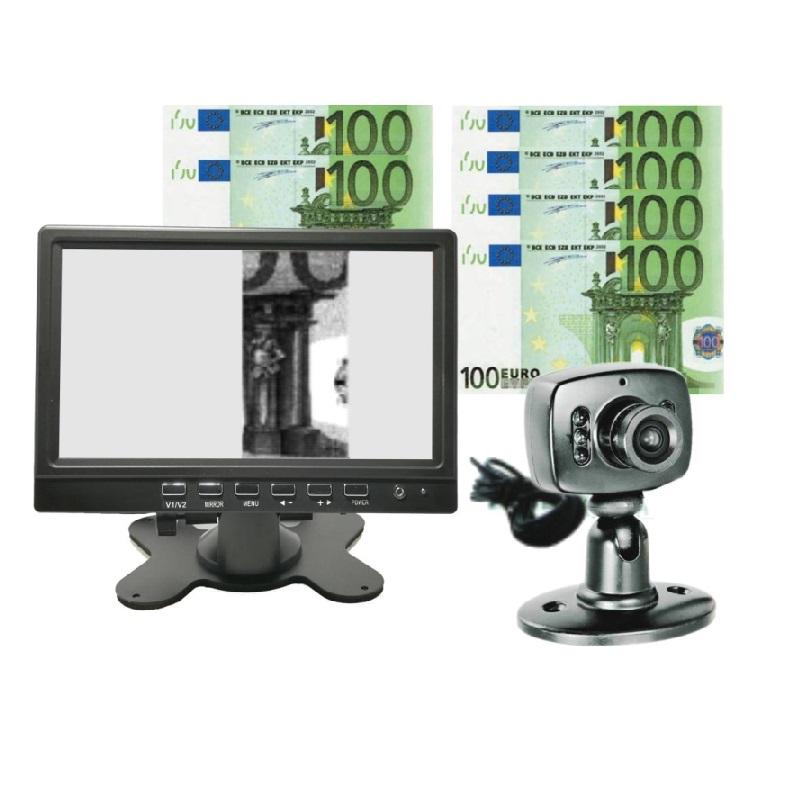

7" COUNTERFEIT MONEY IMAGE DETECTOR MONITOR  ( Model:GW7001-8 )

This product is applicable to check-out stand,such ax shop,supermarket and retail outlet,installation and

operation are simple

Instruction:

1.This product is used to recognise False Money. Many kinds of Currency Detected

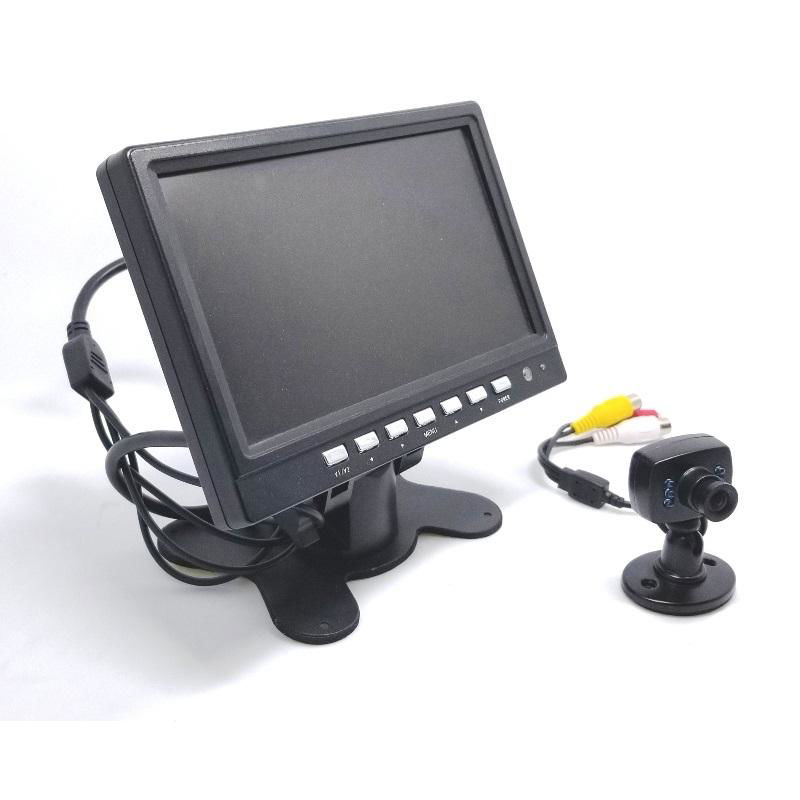

2.It contains one Monitor , one detecting Camera and Adaptor.

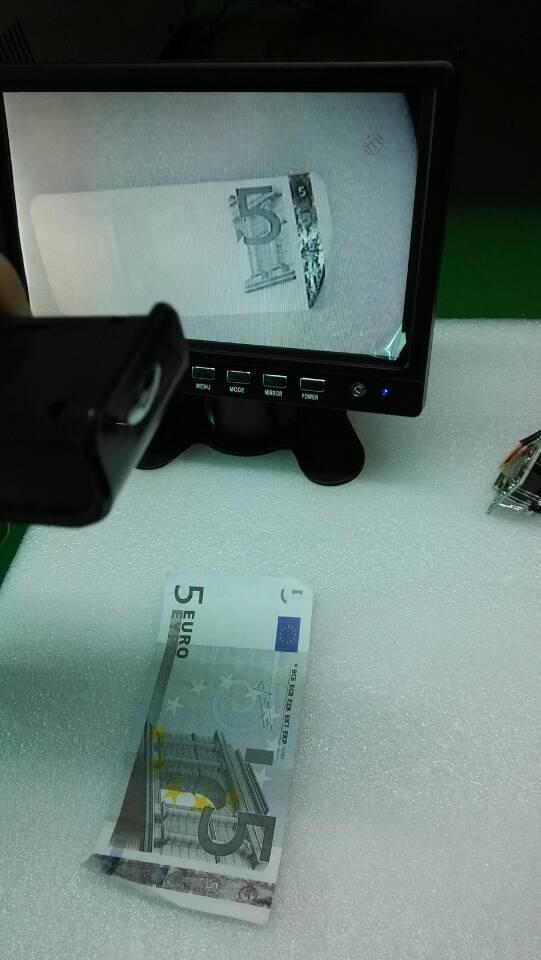

3. When push the Paper Money under the camera,  video image (hidden image of the original currency) is

 displayed on the screen,  user can recognise False Money easily

Specification:

1. Camera viewing Angle: 60 degrees. High technology: infrared imaging

2. A 7 inch TFT LCD  monitor.   Language:English, Deutsch, French, Italian, etc

3. High resolution. Display Resolution: 480（H）×234（V）

4. One channels Video input. （Input one surveillance camera）.

5. Video Format: PAL/ NTSC

6. Power supplied.  12V/1000MA

7. The monitor supplies DC12V/200mA power to the camera

8. Power Consumption: ≤9.6W

9. Apply to 50Hz-60Hz field frequency.

10. Operating temperature: 0 ~ 45℃.

11. Host Dimension: 175×115×90MM  / Weight: 1.2KGS

12. Color box: 307×260×132MM

13. Carton  Dimension : 545×325×418MM         (Standard packing :6sets/ctn )

14. Net weight(4 sets) : 7.0KGS / Gross weight(6 sets): 7.9 KGS

Country of Origin:China/ Shenzhen Goodwill Electrical Co.,Ltd.
