CNC Machine Center Description:

The machine tool is that upright applying to machine work and the mould make a field processes a centre, can meet finishing from the rough to the processing requirements can be completed milling, drilling, tapping, and boring, and other processes

Main Features
>Body and the main components are high-strength cast iron, stability and ensure the stability of long-term use of machine tools;
>At the bottom of column for the bridge span structure with big box base, significantly reduce body weight cutting vibration
>High rigidity, high-speed spindle unit.
>Interval auto-lubrication.

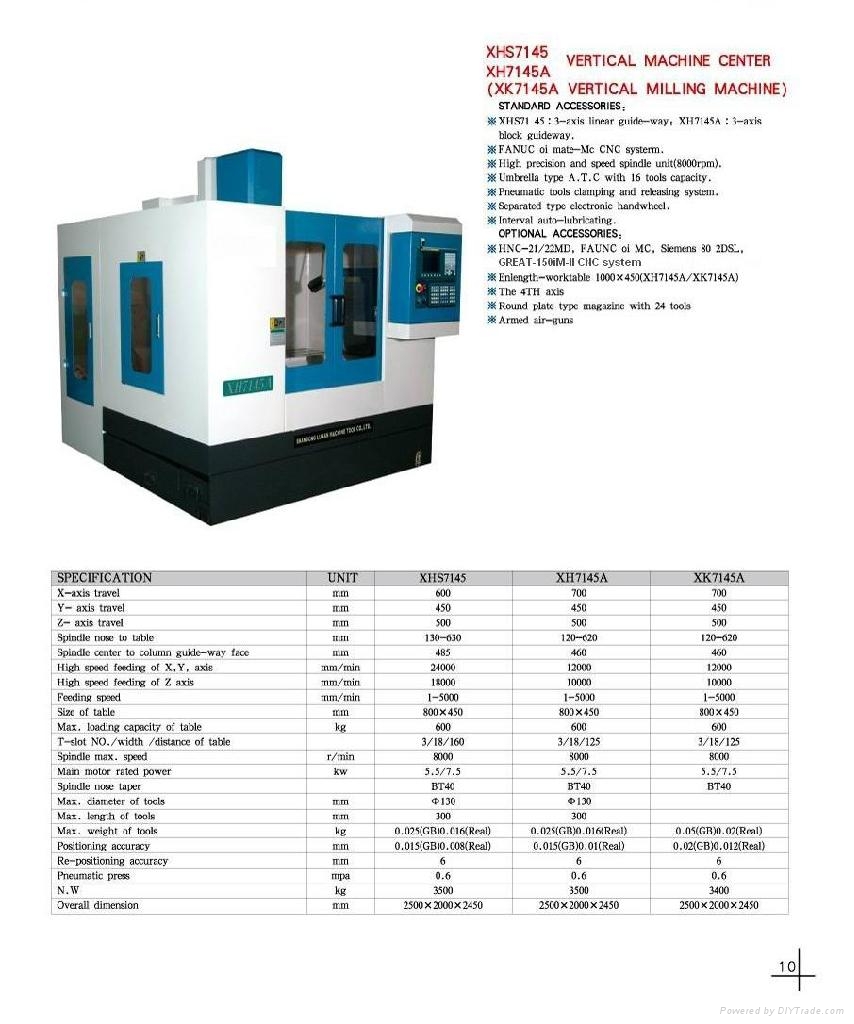

SPECIFICATION	UNIT	XHS7145A	XH7145A	XK7145A
X-axis travel	mm	600	700	700
Y- axis travel	mm	450	450	450
Z- axis travel	mm	500	500	500
Spindle nose to table	mm	130-630	120-620	120-620
Spindle          center        to column guide-way face	mm	485	460	460
High speed feeding of X,Y, axis	mm/min	4000	12000	12000
High speed feeding of Z axis	mm/min	18000	10000	10000
Feeding speed	mm/min	1-5000	1-5000	1-5000
Size of work table	mm	800x450	800x450	800x450
Max. loading capacity of rotary table	kg	600	600	600
T-slot NO./width/distance of rotary table		3×18×160	3×18×125	3×18×125
Spindle max. speed	r/min	8000	8000	8000
Main motor rated power	kw	5.5/7.5	5.5/7.5	5.5/7.5
Spindle nose taper		BT40	BT40	BT40
Max. diameter of tools	mm	Φ130	Φ130
Max. length of workpiece	mm	300	300
Max weight of tools	kg	0.025(GB) 0.016(Real)	0.025(GB) 0.016(Real)	0.05(GB) 0.02(Real)
Positioning accuracy	mm	0.015(GB) 0.008(Real)	0.015(GB) 0.01(Real)	0.02(GB) 0.012(Real)
Repositioning accuracy	mm	6	6	6
Pneumatic press	mpa	0.6	0.6	0.6
N.W	kg	3500	3500	3400
Overall dimension	mm	2500×2000×2450	2500×2000×2450	2500×2000×2450
CNC System		GREAT-150IM-II
