| Model: | JHP-2425-17V25E |
|---|---|
| Brand: | Jinghong |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | panel antenna , wirelss , WIFI |
| Price: |
-
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:28 Jul, 2014 |
--IP66 Waterproof Level
--UV Protected ABS Radome

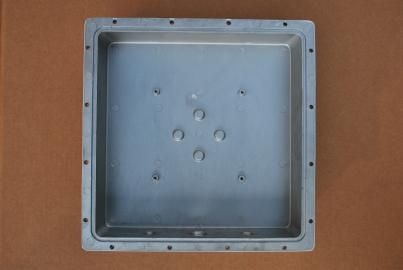

--Integrated Enclosure
--Compatible with Vertical or Horizontal Polarization
--RoHS Compliant
| Model | JHP-2425-17V25E |
| Frequency Range | 2400-2483MHz |
| Gain | 17 dBi |
| VSWR | ≤1.5 |
| 3dB Beam-Width, H-Plane | 25° |
| 3dB Beam-Width, E-Plane | 25° |
| Polarization | Vertical or Horizontal |
| Upper Side Lobes | dB |
| Front to Back Ratio | ≥25 dB |
| Maximum Input Power | 100 Watt |
| Impedance | 50 Ω |
| Lightning Protection | DC Grounded |
| Connector | SMA Female or Customized |
| Inner Space | 233×233×45 mm |
| Antenna Dimension | 270×270×80 mm |
| Weight | 2.5 KG |
| Radome Material | UV Protected ABS |
| Enclosure Material | Aluminium Die Cast |
| Mounting Mast Diameter | Ø40~Ø60 mm |
| Operating Temperature | -40° C to +65° C |
| Rated Wind Velocity | 216 Km/h |
Tips: The Enclosure is suitable for RouterBoard of MikroTik RB711, RB411, RB433, RB450, RB493
