| Model: | SUN-FSW-D2x2 |
|---|---|
| Brand: | GLsun |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Optical Fiber |
| Label: | Optical Switch , micro optical switch , switch |
| Price: |
-
|
| Min. Order: | 1 pcs |
| Live Chat: | Last Online:30 Mar, 2017 |
| Applications | |
| ·R&D in Laboratory
·System Monitoring ·OADM ·MAN (Metropolitan Area Network) |
|

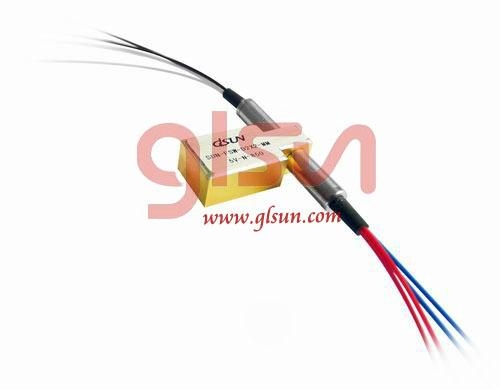

| SUN-FSW-D2×2 Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)28.5×(W)12.6×(H)8.7mm （SM）; (L)27.0×(W)12.6×(H)8.2mm （MM）. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system. | |
| D2×2 SM Specifications | |
|
Parameters |
Unit |
SUN-FSW-D2×2-S |
|
Wavelength Range |
nm |
1260 ~ 1650 |
|
Test Wavelength |
nm |
1310 / 1550 |
|
Insertion Loss 1, 2 |
dB |
Typ: 1.0 Max: 1.5 |
|
Return Loss 1, 2 |
dB |
≥ 50 |
|
Crosstalk 1 |
dB |
≥ 55 |
|
PDL |
dB |
≤0.05 |
|
WDL |
dB |
≤0.25 |
|
Repeatability |
dB |
≤±0.02 |
|
Operating Voltage |
V |
3.0 or 5.0 |
|
Durability |
Cycles |
≥ 10 Million |
|
Switching Time |
ms |
≤8 |
|
Optical Power |
mW |
≤500 |
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Relative Humidity |
% |
5 ~ 95 |
|
Weight |
g |
16 |
|
Dimension |
mm |
(L)28.5×(W)12.6×(H)8.7 ±0.2 |
|
Note: 1 Within operating temperature and SOP.
|
||
