| Model: | GCU-10 |
|---|---|
| Brand: | KUTAI |
| Origin: | Made In Taiwan, China |
| Category: | Industrial Supplies / Machinery / Power & Generating Sets |
| Label: | Generator Control Un , GENERATOR CONTROL , KUTAI GCU-10 |
| Price: |
US $130
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:20 Oct, 2023 |
KUTAI GCU-10 Generator Control UnitThe GCU-10 Generator Control Unit is an universal economical programmable genset controller. Equipped with high illuminating LED with universal graphical interface helps to notify the operator the generator status. Optional relay module GCU-11R (12V/24V) helps to simplify the wiring and connection process.
DC Supply 9.0 to 36 VDC
Alternator Input Range Voltage 5~300 VDC
Frequency 50~60 Hz
Fuel Solenoid Signal Output 5 Amp # 12/24 VDC
Start Signal Output 5 Amp # 12/24 VDC
Warm up Signal Output 5 Amp # 12/24 VDC
Accessory " ON " Output 5 Amp # 12/24 VDC
Idle Control Conductor Capacity 5 Amp # 12/24 VDC
Power Consumption Under 3 VA on Auto

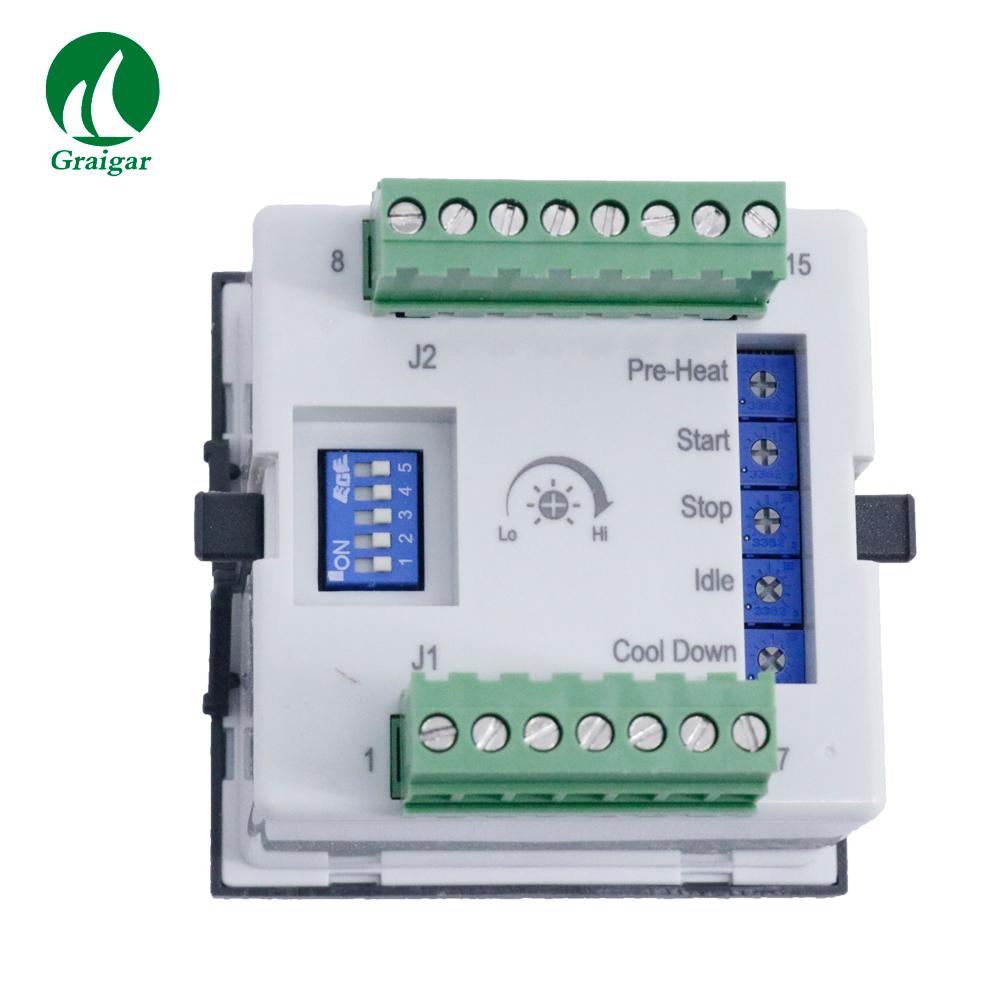

Adjustable Timers Engine Pre-Heat : 2~30 sec.
Starter Cranking Time : 1~15 sec.
Energize to STOP : 1~15 sec.
Engine Idle (Governor) : 0~300 sec.
Engine Cool-down : 0~300 sec.
Environment Operation Temperature : -20~70 C
Relative Humidity : Maximum 90%
Protection & Alarm Status Indicators : Start Failure, High Water Temperature,Low Oil Pressure,Overspeed,Underspeed, Emergency Stop, Extra Prog. Input, Low Battery Voltage
Panel Installation Cut-Out 66.0 x 66.0 0.5 mm
Dimensions 72.0 (L) x 72.0 (W) x 50.0 (H) mm
Weight 166 g 2%
