Features
R ed construction providing shock, dust and moisture resistance
Dual monitor position with automatic image orientation
Automatic arc calibration and iber identiication
User-selectable iber clamping method sheath clamp or fiber holders
Auto-start tube heater feature
Color LCD display with anti-relective coating for excellent visibility in bright sunlight
Simultaneous battery charge and splicer operation
Long life battery (up to 160 splice/heat cycles per charge)
Detachable work table incorporated into the transit case
Data and video download software and splicer upgrade software included; software upgrades through PC application via the internet
Green friendly RoHS & WEEE compliant

Specifications

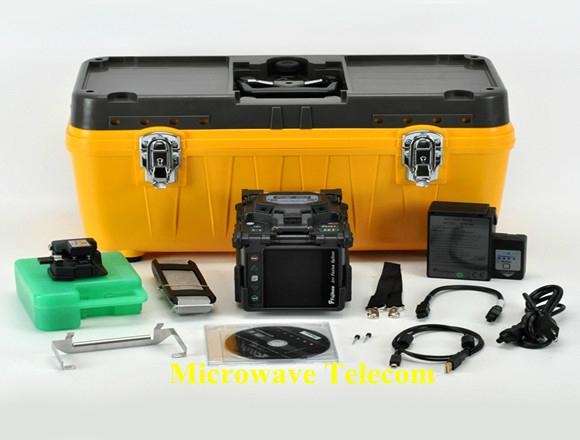

Model FSM-60S
Applicable Fibers SM(G.652),MM(G.651), DS(G.653),NZ-DS(G.655)
Cladding Diameter 80 um to150 um
Coating Diameter 100 um to 1000 um
Fiber Cleave Length 8 to 16mm with 250um coating diameter, 16mm with 900um coating diameter
Typical Average Splice Loss 0.02dB with Sm, 0.01dB with mm, 0.04dB with DS, 0.04dB with NZDS
Splicing Time Typical 9 seconds with standard single-mode fiber
Arc Calibration method Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing modes 100 preset and user programmable modes
Splice Loss Estimate Based upon dual camera core alignment data
Storage of Splice Result Last 2000 results to be stored in the internal memory
Fiber Display X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation
Magnification 300X for single X or Y view, or 187X for X and Y view
Viewing method Dual cameras with 4.1 inch TFT color LCD monitor
Operating Condition 0 to 5,000 m above sea level, 0 to 95 % RH and -10 to 50°C respectively
mechanical Proof Test 1.96 to 2.25N
Tube Heater Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time Typical 30 seconds with FP-03 sleeve, 35 seconds with FP3(40), 35-55 seconds with Fujikura micro sleeves
Protection Sleeve Length 60mm, 40mm, micro
Splice Cycles with Battery Typical 160 cycles with power save functions activated
Power Supply Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11, 13.2V DC with BTR-08 battery
Terminals USB 1.1 (USB-B type) for PC communication.
Mini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater
Wind Protection Max. wind velocity of 15m/s. (34 mph)
Dimensions (W × D × H ) 136 × 161 × 143 mm; 5.3 × 6.3 × 5.6 inches
Weight 2.3 kg (5.1 lbs) with AC adapter; 2.7 kg (5.9 lbs) with BTR-08 battery
