Electronic encapsulation silicon rubber
Product Description
Usage:
Filling for LED,LCD electronic display, circuit board.
Description:
Applications:
It is applicable to sealing,bonding,coating for electronic parts.
HY-9300 is two-component addition cure silicone rubber which can be divided into a transparent type and a flame resistant type. The product, which can be vulcanized under room temperature or moderate temperature with low viscosity, easy mixing and pouring, is applicable to bulk pouring with excellent electrical performance.
Standard Datasheet:
|
Model
|
HY-9300
|
|
Type
|
Gelatin
|
|
Component
|
A
|
B
|
|
Appearance(liquid)
|
Transparent
|
Transparent
|
|
Mixing ratio(%)
|
1
|
1
|
|
Viscosity (Pa.s)
|
2.5±0.5
|
|
Pot life in 25℃(min)
|
300
|
|
Curing time in 80℃(min)
|
30
|
|
Hardness (Shore A°)
|
0
|
|
Dielectric strength (kv/m-1)
|
≥25
|
|
Elongation at break (%)
|
-
|
|
Volume resistivity (Ω)
|
≥1.0 ╳1015
|
|
Dielectric constant (1.2MHz)
|
3.0
|
|
Temperature resistance (℃)
|
-60～200
|
|
Flame retardant
|
UL94-V1
|
Features:
The product has low shrinkage and non-corrosive; the silicone rubber can be used for a long period at the temperature of -60℃～200℃ with the characteristics of moisture-proof and waterproof, radiation-proof as well as weatherable and anti-ageing.
Note: Vulcanizing under the room temperature or heat curing according to different requirements.
Using instruction:
1. Mix the component A and component B evenly according to the proportion and can be used after deaired.
2. The vulcanizing time depends on the temperature in case of heat curing is required. The higher the temperature, the shorter the vulcanizing time, and the thicker the product, the longer the time.
3. The flame resistant type silicone may produce deposit after long-time placement. Mix the component A and component B respectively and evenly according to the proportion before using.
For more information, pls contact Ms.Fannie anytime
Hope our silicone rubber will do some help for you and for your company.
Product Image

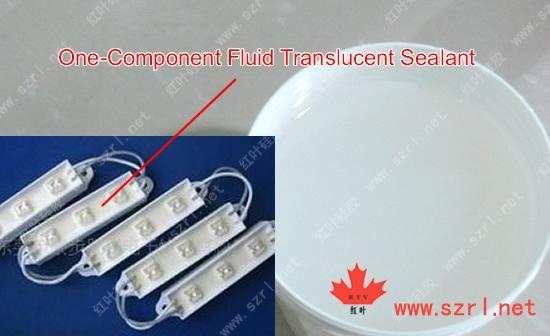

Img 1
Img 2
