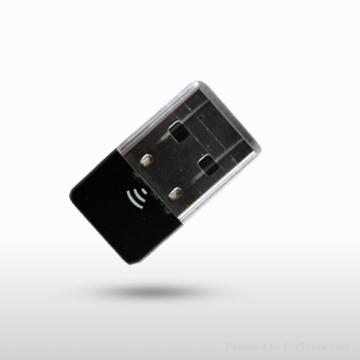

RT5370 MINI wireless usb adapter for STB

RT5370 MINI wireless usb adapter for STB 1

RT5370 MINI wireless usb adapter for STB 2

RT5370 MINI wireless usb adapter for STB 3

Model:	ST-S01
Brand:	OEM
Origin:	Made In China
Category:	Computers & AV Digital / Network Hardware & Parts
Label:	mini wifi usb dongle , 150Mbps wifi adapter , wireless usb card
Price:	US $3.9 / pc
Min. Order:	100 pc

Inquire Now Add to Basket

Member Information

Shengtai Technology Limited

Free MemberGuang Dong - China

Live Chat:

Last Online:29 Mar, 2013

Product Description

1. MINI size WiFi adapter
2. 802.11N 150Mbps wireless USB adaptor
3. Ralink RT5370 chipset
4. High peak rate WiFi adapter

Product name : 150Mbps wifi usb adapter

Item : ST-S01

Details :

Main Features:

l 802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps

l 802.11n: (20MHz) MCS0-7,Support up to 72Mbps

(40MHz) MCS0-7, Support up to 150Mbps

l OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.

l Power Management

Certification

l Wi-Fi Certification: 802.11 b/g/n, WPA, WPA2, WMM , WMM-PS

l WHQL, Cisco CCX

Hardware
Chipset	Ralink RT5370, 1T1R mode
Host interface	USB2.0/1.1, type A ( 4 pin header)
LEDS	Link/ Activity
RF
Antenna	Built-in PCB antenna.
Frequency	2412~2483.5 MHz, ISM band.
Transmit Power	802.11b:17+/-1.5dBm; 802.11g: 14.5+/-1.5dBm;
	802.11n: (HT20), 14.5+/-1.5dBm, 802.11n: (HT40), 14+/-1.5dBm,
Receive Sensitivity	802.11b: -88 dBm@11Mbps; 802.11g: -72dBm@54Mbps
	802.11n: (HT20), -71dBm@MSC7, 802.11n: (HT40), -68dBm@MSC7,
Software
Operation System	Windows CE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X
Security	WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage/Current Range*	DC 5.0V ± 5% / <145 mA
Operating Temperature	0°C - 50°C
Storage Temperature	-20°C - 70°C
Operating Humidity	RH 95% (Non-Condensing)
Storage Humidity	RH 95% (Non-Condensing)

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
