| Model: | SC-TM06AS |
|---|---|
| Brand: | Weisky |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | cctv tester , cctv camera tester , digital multimeter |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:22 Nov, 2012 |
|

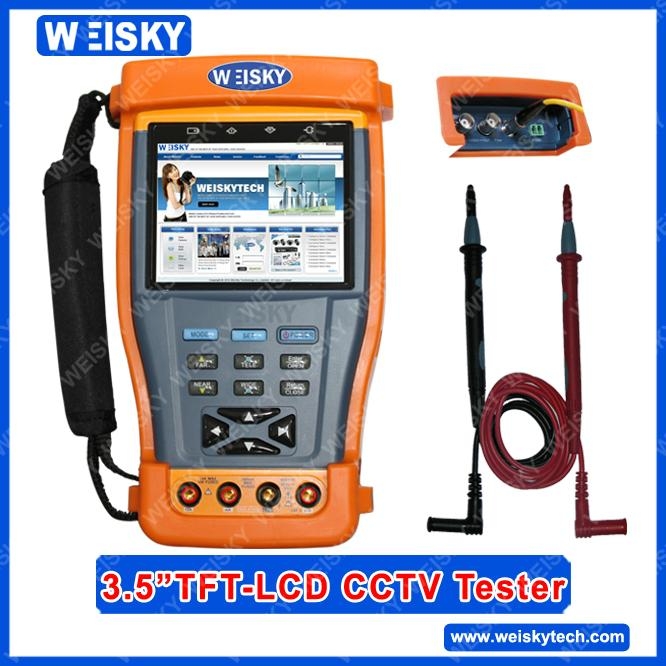

3.5-Inch TFT LCD CCTV TESTER PRO With High Stability Digital Multimeter And Optical Power Meter
|
|
|
MODEL
|
SC-TM06AS
|
|
Video Test
|
|
|
Signal mode
|
NTSC/PAL (Auto adapt)
|
|
Display
|
3.5 inch digital TFT-LCD ,960 x 240 resolution
|
|
LCD adjustment
|
Brightness, Contrast, Saturation adjustable
|
|
Video IN/OUT
|
1 channel BNC Input & 1 channel Output
|
|
Video Output Mode
|
1.0 Vp-p
|
|
PTZ controller
|
|
|
Communication
|
RS232, RS422 simplex and RS485
|
|
PTZ Protocol
|
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.
|
|
Baud Rate
|
150,300,600,1200,2400,4800,9600,19200bps
|
|
Video Signal Generation
|
|
|
Color bar generation
|
Output channel colorbar video signal for testing monitor or video cable
|
|
UTP CABLE TEST
|
|
|
UTP cable test
|
Test UTP cable connection status and display in the screen. Read the number of the test box.
|
|
DC12V 1A power output
|
|
|
DC12V power output
|
Output DC12V1A power for camera
|
|
Audio input test
|
|
|
Audio input test
|
test the pickup and other audio equipments on the front-end
|
|
RS485 data analyst
|
|
|
Data Monitor
|
Captures and analyzes the command data from controlling device
|
|
POWER
|
|
|
Power Adapter
|
DC5V, 2A
|
|
Battery
|
Built-in 3.7V Lithium polymer battery ,3000mAh
|
|
Rechargeable
|
After charging 3-4 hour, working time lasts 12 hours
|
|
Low Consumption
|
Energy saving technology
|
|
General
|
|
|
Working Temperature
|
-30℃---+70℃
|
|
Working Humidity
|
30%-90%
|
|
Dimension/Weight
|
176mmx94mmx36mm/340g
|
|
High Stability Digital Multimeter
|
|
|
SYMBOLS
|
U：DC Voltage Measuring
U~：AC Voltage Measuring
A：DC Current Measuring
A~：AC Current Measuring
Ω：Resistance Measuring
：Continuity Testing
：Diode Testing
：Capacitance Measuring
|
|
Optical Power Meter
|
|
|
Measure Range(dBm)
|
-70～+10dBm -50～+26dBm
|
|
Calibrated Points(nm)
|
850nm、980nm、1310nm、1480nm、1550nm
|
|
Detector
|
InGaAs
|
|
Uncertainly
|
±2%
|
|
Display Resolution
|
Linear：0.1%; Nonlinear:0.01dBm
|
|
Operating Temperature(℃)
|
-10～+50
|
|
Storage Temperature (℃)
|
-20～+70
|
|
Linker
|
FC/PC
|
