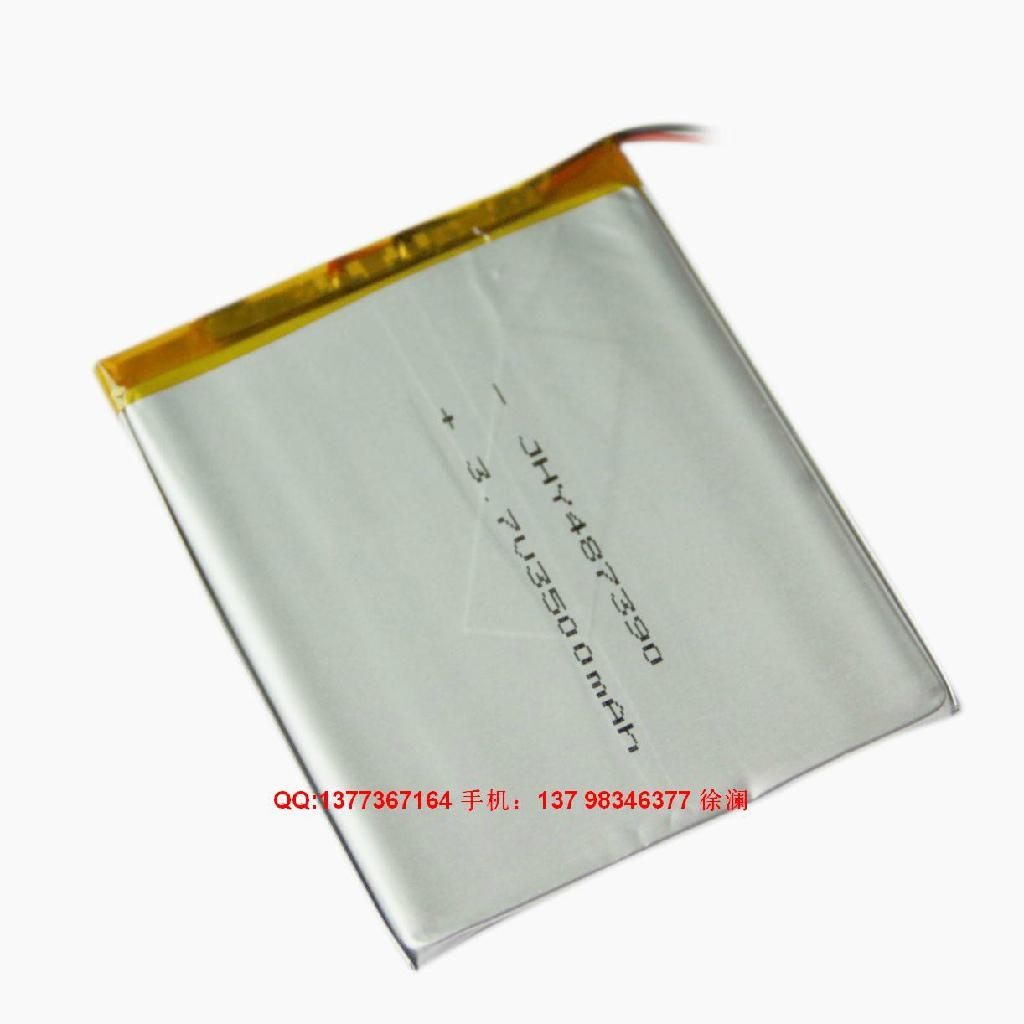

3500mAh rechargeable polymer lithium ion battery 3.7v
1.Model:487390
2.Nominal voltage:3.7v.
3.Nominal capacity:3500mah.
4.Lower self discharge.
5.long cyle life and can reach above 800 times.
6.on time delivery.
7.CE.FCC,UN38.3,ROHS certification available.
8.Environmental friendly.
9. Lower self discharge.
10. No memory effect.
487390 3.7v 3500mah paremeter:
| No. | Item | Specification |
| 1 | Rated Capacity | 3500mAh |
| 2 | Nominal Voltage | 3.7V |
| 3 | Dimensions | ≤ 5.0mm (T)* ≤ 73.8mm(W)* ≤ 90.0mm(L) |
| 4 | Weight | 64.5g |
| End-of-charge Current | 0.02C | |
| 6 | Standard Charge | Constant Current: 1C3500mA
Constant Voltage: 4.2V End-of-charge Current: 0.02C |
| 7 | Standard Discharge | Using 0.2Cconstant current discharge to the Discharge Cut-off Voltage.
|
| 8 | Maximum Continuous Charge Current | 1C(3500mA) |
| 9 | Maximum Continuous Discharge Current | 1C3500mA |
| 10 | Operating Temperature Range | Charge: 0 ~ 45’ C |
| Discharge: – 20 ~ 55’ C | ||
| StorageTemperatureRange | -5 ~35’ C | |
| 11 | Operating And Storage Humidity Range | Less than 85%RH |
Main application:
1. GPS, MP3, MP4, PDA, PMC, PMP, PSP;
2. Lights, model aircraft, miner's lamp, safety helmets, safety headlights;
3. Bluetooth headsets, e-books, mobile DVD, mobile TV, mobile scales, handheld computer, positioning devices;
4. Wireless meter reading, wireless ordering, wireless data transmitter.
