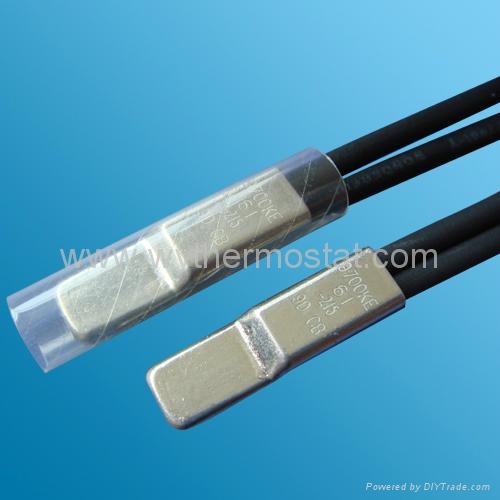

17AME model is a temperature sensitive thermal protector. It has SPST action type and can trip off quickly when temperature reaches at the preset range. This thermal protector has a small size but big capacity. It is widely used in heating pad, motors, lightings, transformers and other home appliances.

Based on high quality raw materials that imported from Japan and USA, and reliable automatic equipment, our 17AM series thermal protector has perfect quality consistence and have been approved by many famous motor manufacturers in the world, like Welling motors, Johnson Electric, Samsung, Sanyo etc.

* Special Features of thermal protector:

1. Small Size but high capacity
2. Temperature is 100% calibrated
3. SPST property
4. Both temperature and current sensitive
5. Type and length of wires are optional
6. Terminals can be same or opposite end
7. 100% comply with RoHS.
8. 100,000 life cycles
9. Max temperature can be 180ºC



* Electrical Ratings of 17AME thermal protector:

1. 20A / 16V DC
2. 10A / 250V AC
3. 20A / 125V AC



* Temperature Ratings:

1. Temperature range: 55-180ºC
2. Tolerance:±5ºC



* Applications of thermal protector:

1. Various motors
2. Pumps, air compressors and cleaners
3. Fluorescent ballasts and lightings
4. Heating pads, electrical blankets
5. Electrical tools, chargers, transformers
6. Home appliances, heating appliances



* Certification of thermal protector:

1. UL&CUL: E258612 E309992
2. CQCCQC07002018912
3. VDE: 40017383
4. CB: DE1-34606
