| Model: | JYD-7042AHD-1.0 |
|---|---|
| Brand: | OEM/ODM |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | CCTV camera , 1.0Mp cctv camera , Dome camera |
| Price: |
US $16.5
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:11 Apr, 2020 |
1/
High quality HD CVI IR waterproof doom cctv Camera CVI
Product Description

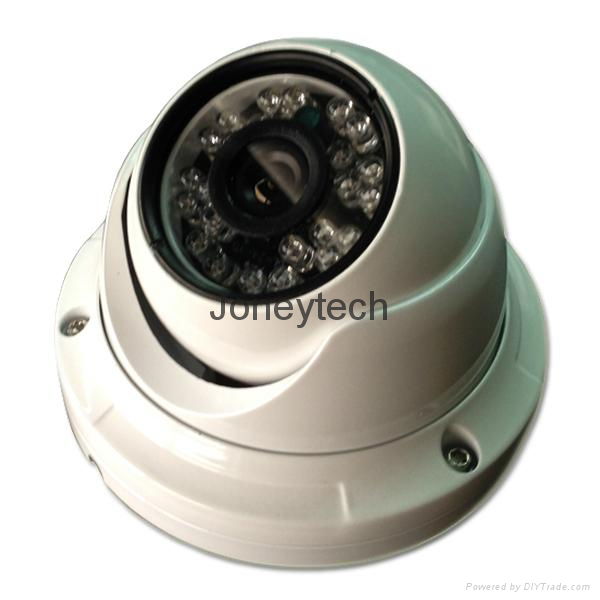

Vandalproof Metal Dome Camera(Fixed Lens)
IP66 Waterproof Metal Dome Camera
Lens: Board Lens 3.6mm/F2.0
IR LED: 24x F5 IR LED
IR Range: >20m
Waterproof IP66
Specification
|
Model |
JYD-7042AHD-1.0MP |
||
|
Image Sensor |
Color 1/4" CMOS 1.0Megapixel |
||
|
Effective Pixels |
1280(H)×720(V) |
||
|
Video Frame Rate |
PAL: 25fps/720P NTSC: 30fps/720P |
||
|
Electronic Shutter |
Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec |
||
|
Synchronization |
Internal |
||
|
Mini. Illumination |
0.001Lux/F1.2(AGC ON), 0Lux IR on |
||
|
Video Output |
1-channel BNC HDAHD high definition video output |
||
|
Camera Features |
|||
|
Max. IR LED Length |
20m, Smart IR |
||
|
IR LED |
24x F5 IR LED |
||
|
Day/Night |
Auto(ICR) / Color / B/W |
||
|
Noise Reduction |
2D |
||
|
Lens |
|||
|
Focal Length |
3.6mm/F2.0 |
||
|
Lens Type |
Board Lens |
||
|
General |
|||
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
||
|
Power Supply |
DC12V±10% |
||
|
Ingress Protection |
IP65 |
||
|
Power Consumption |
Max 4W |
||
|
Working Environment |
-30°C~+60°C / Less than 95%RH |
||
| Price Terms: | exw |
|---|---|
| Payment Terms: | TT/Western Union |
| custom_attr1: | cctv doom camera |
