Auto-Deburring Machine

Model:	MIN
Brand:	FAE
Origin:	Made In China
Category:	Industrial Supplies / Other Industrial Supplies
Label:	nonstandard equipme , Automation equipment , Deburring equipment
Price:	¥80000 / pc
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Flexible automation equipment CO.,LTD

Free MemberGuang Dong - China

Live Chat:

Last Online:27 Dec, 2023

Product Description

ØApplications

Ø It is applicable in the HDD field, it can efficiently removethe hard burrs,

flushes, residues which remain on the surface of machining parts.

Ø Features

Ø Remove burrs and residues located in Arm surface and lighting hole by

special tool.

Ø Easy replace the cutter and tooling, Easy maintenance,

Ø Double tooling, individual control

Ø Industry safety light curtain

Ø Touch Screen control, portable editor

ØSpecifications

Item	Spec.	Item	Spec.
Travel ranges	12×30×50 mm	Max. loading of Y1 / Z axis	5 kg
Repeatability of Z axis	0.003 mm	UPH	500pcs/hr
Precision of Z axis	0.005mm	Power supply & Air pressure	220V/50Hz 0.7Mpa（Max.）
Max. speed of Z axis	100 mm/sec	Size / Weight	5207501250cm (L×W×H) / 50 kg

ØParameter setting

It can easily check the running status of Motors, Cylinders and other motion units, and promptly set or reset the parameters for these units based on your findings

Product Image

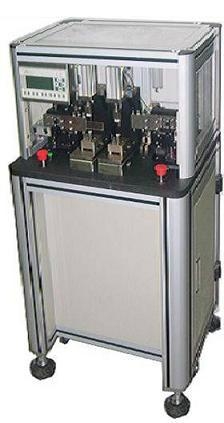

Img 1
