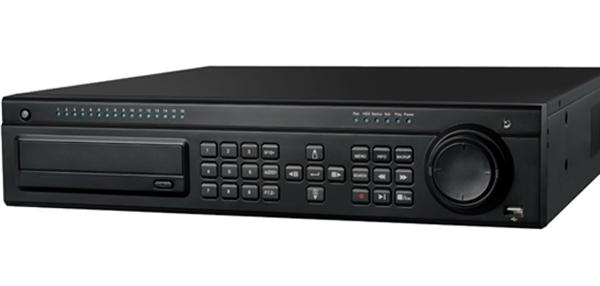

| Model: | VD-1008HD |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | HD SDI DVR , SDI DVR , DVR |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:18 May, 2012 |
|
Specification：
|
Model
|
|
|
VD-1008HD
|
||
|
System
|
Compression Format
|
H.264
|
|
OS
|
Embedded Linux
|
|
|
Video
|
Input
|
SDI×4, CVBS×4
|
|
|
Standard Output
|
1*VGA:1280x1024,HDMI:1080P(1920X1080),
Loopout:BNCX4
|
|
Audio
|
Audio Input
|
4CH
|
|
Audio Output
|
1CH
|
|
|
Bidirectional Talk
|
YES
|
|
|
Recording
|
1080P
|
120(NTSC)/100(PAL)fps
|
|
D1
|
120(NTSC)/100(PAL)fps
|
|
|
Recording Mode
|
Schedule, Manual, Motion, Sensor
|
|
|
Playback
|
Playback Channel
|
1/4CH
|
|
Search Mode
|
Time, Event, File Management, Image(snapshot)
|
|
|
Backup
|
USB Disk
|
1 USB2.0 port
|
|
DVD Burner
|
Optional
|
|
|
Back up Format
|
DAT or AVI
|
|
|
Remote Application
|
Dual Stream
|
Master stream: 1CH Network stream: 1~25/30fps@CIF
|
|
Browser
|
IE (windows XP/2000/vista/7) ,Safari(Mac OS), chrome, firefox
|
|
|
CMS
|
YES
|
|
|
3G
|
SuperCam / pro / HD for iPad / iPad2 / iPhone / Blackberry / Android / Symbian / Windows mobile
|
|
|
User Access
|
18 users online with professional authority management
|
|
|
Alarm
|
Alarm Input
|
8CH
|
|
Alarm Output
|
4CH
|
|
|
Storage
|
HDD
|
4SATA
|
|
e-SATA
|
2
|
|
|
PTZ
|
PTZ
|
2*RS485
|
|
PTZ Protocol
|
PELCOP,PELCOD,LILIN,MINKING,NEON,STAR,VIDO,DSCP,VISCA,
SAMSUNG,RM110,HY
|
|
|
Network
|
Ethernet
|
1,000 Mbps Ethernet (RJ-45)
|
|
Protocol
|
TCP/IP, DHCP, DDNS, NTP, SMTP
|
|
|
Others
|
IR Controller
|
1
|
|
Power Supply
|
100VAC~240VAC
|
|
|
Operating Temperature
|
0℃ ~50℃
|
|
|
Humidity
|
10% ~ 90% Humidity
|
|
