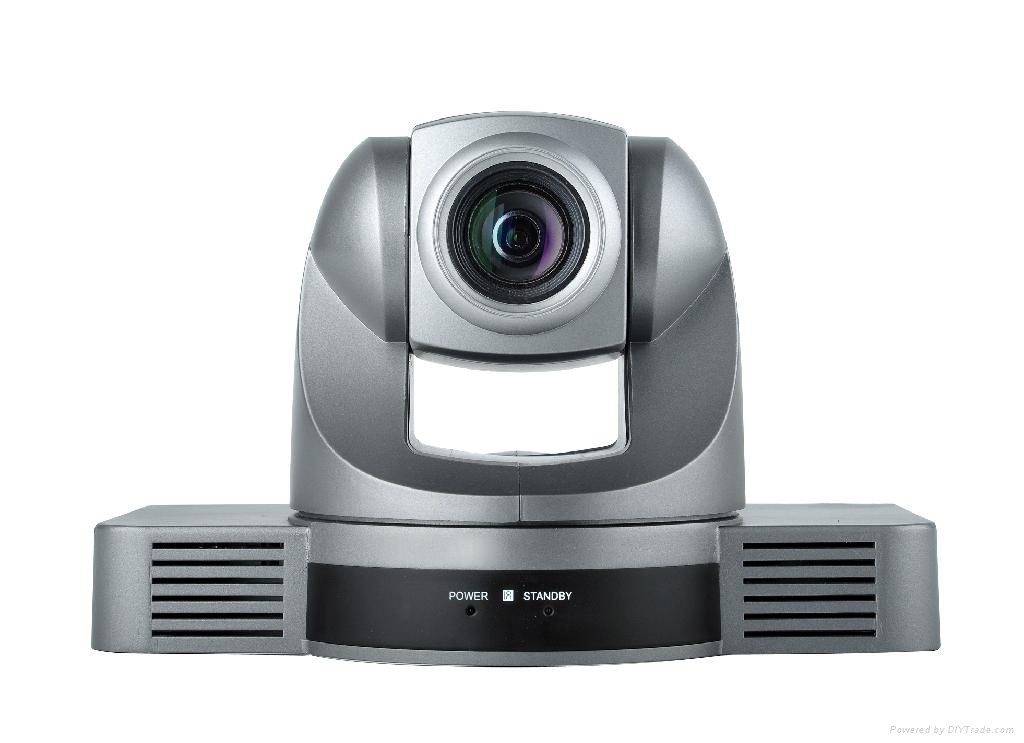

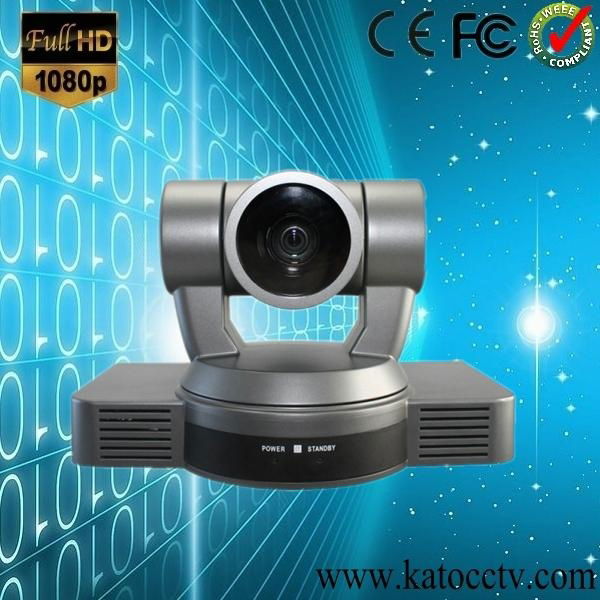

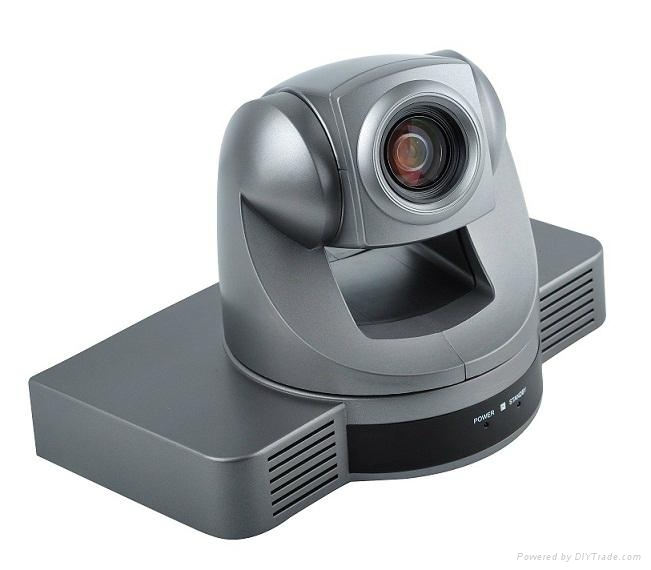

1080P/I 60Hz Full HD PTZ Video Conference camera system meeting camera KT-HD20 KT-HD40
Features
Two/Four Mega pixels CMOS image sensor
Wide area, quiet, fast Pan/Tilt, shooting:
New step motor with peace and fast operation, can move to appoint angle quickly and have a wide area shooting, The Max. Pan speed 80 deg. /sec(0 to 360 deg). The Max. Tilt speed 60 deg. /sec(-30 to +180 deg)
From SD NTSC/PAL to HD multiple formats video output
Up to different requirement, they can supply 8 different signal video output from SD to HD
High quality image transmission
RS232C/422 remote control(VISCA)
Using RS422(VISCA) interface, we can set camera pan, tilt, zoom and other operation
Super wide angle(62.4° /58.8° )
New wide-angle lens with a wide Angle image capture, the best choice of small or medium meeting room
9 preset positions by remote commander, 255 preset positions by PC or keyboard controller, memory auto store when power off
VISCA and Pelco P/D protocol can be selected by code switch
Enter in and out menu by remote commander directly
Multi function Remote control
Specification
Item No.
KT-HD20
KT-HD40
Image Sensor
1/3 type CMOS
1/2.5 type CMOS
Effective Pixels
Approximately 2Mega pixels(16: 9)
Approximately Four Mega pixels
Signal System
1080/60p, 1080/60I, 1080/30p, 1080/50I, 1080/25p, 720/60p, 720/50p, NTSC, PAL
Horizontal Viewing Angle
62.4° (wide-angle) to 5.4° (far-end)) when HD signal output
58.8° (wide-angle) to 5.5° (far-end) when HD signal output
Focus system
Auto/Manual
Lens
10x optical zoom f = 5.1 to 51 mm, F1.8 to F2.1
10x optical zoom f = 6.3 to 63 mm, F1.8 to F2.5
Min. Object distance
10-800mm(wide)
Minimum Illumination
1.2Lux(F1.8, 50IRE))
Color2.0Lux(F1.8, 50IRE))
Zoom
120X(10 optical*12 digital)
160(10 optical*16 digital)
Exposure Control
A
Uto/Manual/Priority AE/Exposure Compensation/ Bright
Shutter Speed
1/2~1/10000S
1/50~1/10000S
Gain
Auto/Manual (-3 ~ +18dB, 2 dB/step)
White Balance
Auto/ Indoor/Outdoor/One push Auto/Manual
S/N Ratio
50dB
Pan/Tilt
Pan: +/- 360° (max. Speed: 80° /s) Tilt: -30° To + 180° (max. Speed: 60° /s)
Preset Position
9 by remote commander, 255 by keyboard controller

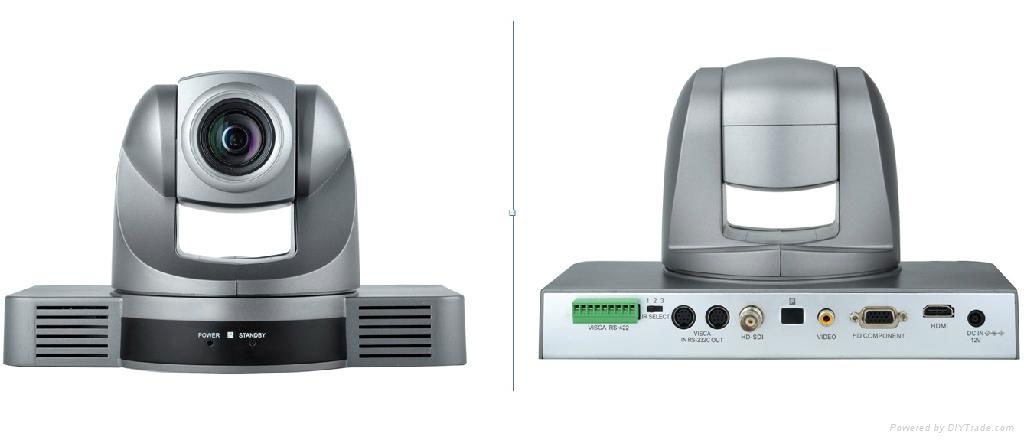

Video Output
HD-SDI, HDMI, Y/Pb/Pr
HDMI, Y/Pb/Pr
S D
VBS, Y/C
Power
12V DC(10.8~13.0V DC)
Operating Temperature
0° C~40° C
Storage Temperature
-20° C~+60° C
Consumption
12W
Dimensions
(L)240× (W)155x(H)140mm
Weight
1250g
Color
Silver gray
Supplied accessories
AC power adapter, IR controller, Component cable, RS232C wire, Operation menu
