Brand: JBL type: VRX-932LA-1

VRX932LA - 1 - white optional

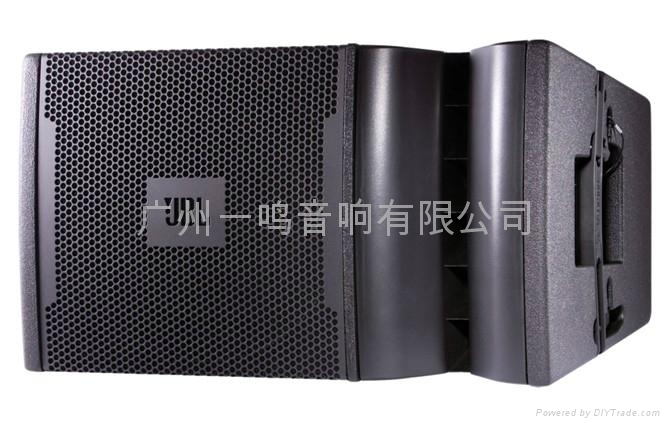

Twelve inch double line array loudspeaker system

The VRX932LA - 1 is a light weight ( 46 lb / twenty-one kg ) compact 12" bidirectional line array loudspeaker system design for array of up to 6 units.

Listen to the proprietary drivers with neodymium magnet r bass difference for the high power capability and light weight.

VRX932LA 1 function 3 x 2408J ring diaphragm frequency driver. In 2408 the new listening professional compression driver design.

Constant curvature waveguide array of hitherto unknown consistency.

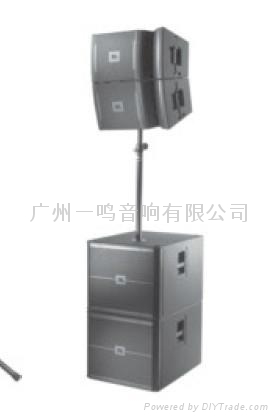

Double angle pole socket to flexibility. One or two speakers may be mounted on a 35 mm column or three tripod stand.

Integral control simple hardware aspects of the shell and an optional array frame. Array of up to 6 chassis can fly.

Array configuration choice of license" array shadow " passive mode.

Rated power : 800W / 1600W / 3200 W

Frequency range: 57 Hz to 20000 Hz

( - 10 dB )

Size

(H x W x D) : 349mm x 597mm x 381mm

Frequency response: 75 Hz to 20000 Hz

( + / - 3 dB )

Coverage mode: 100 x 15 DEG

Cross mode: dual power amplifier / passive, external switch

Crossover frequency: one hundred and thirty-two DB SPL peak 1.2 kHz

System maximum sound pressure level: passive: one hundred and thirty dB SPL peak, bi-directional amplifier frequency: one three zero dB SPL peak

The sensitivity of the system ( 1W @ 0: passive: 95 dB

The bi-directional amplifier frequency: 95 dB

The bi-directional amplifier high frequency: 114 DB

The low frequency driver: 1 x 305 mm ( 12 to 2262H ) differential drive from bass and

Neodymium magnets, a voice coil, a magnetic gap.

The high frequency driver: 3 x listen to 2408J, 38 mm ( 1.5) voice coil, neodymium

Compressed drive

Nominal impedance: 8 ohms: passive

The bi-directional amplifier frequency: 8 ohm

The bi-directional amplifier high frequency: 8 ohm

Enclosure: 18 mm, 11 layers of birch plywood

Pause / installation: optional VRX932LA autofocus frame packet line array

Finish: Black DuraFlex TM completed

Grid: power coating, black, 16 language through hole steel and acoustically transparent bubble

Input connector: Neutrik R Speakon r compatible load - 4 ( x 2 )

Net weight: 21 kg (forty-six lb )

Optional accessories: VRX932LA atrial fibrillation: suspension array frame

SS2 - Bank: three tripod speaker stand

Type SS3, bank: satellite speaker column,

41 ( 1041 mm )

Type SS4, bank: adjustable satellite speaker column can be used for SRX718S

Technical parameters

Frequency range ( 10dB ) 57Hz ~ - 20kHz

Frequency response ( 75Hz + 3dB ) ~ 20kHz

Coverage (horizontal vertical x ) 100 x 15 degree

Power ( 1) (CW / programs / peak ) passive classification: 800W / 1600W / 3200W

Dual power amplifier : low frequency of 800W / 1600W / 3200W

Dual power amplifier: high frequency of 75W / 150W / 300W

Maximum sound pressure level SPL ( 2) passive classification: 130dB / 1m

Dual power amplifier : low frequency of 130dB / 1m, 139dB / 1m high frequency

The speaker unit 2262 of the low frequency, high frequency 3 x 2407J ( 1.5" voice coil )

Volume ( high x width x depth ) 349mm x 597mm x 381mm

21kg weight ( 46 pounds )
